Beyond the Expected

Revolver is the lightest full-suspension frame Norco has ever built, with a surprising amount of capability. At the core of its efficiency is our advanced approach to a Flex-Pivot suspension design.

With aggressive XC geometry and a carbon frame layup optimized for each frame size to enhance stiffness and compliance, Revolver maintains consistent kinematic and weight distribution across all sizes. It's a strong foundation for any rider to drive up and charge down, beyond the expected.

The Revolver C3 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one's for you.

Efficient where it counts, aggressive where it matters.

The Revolver C3 130 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistant weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.

DETAILS

• Precision and control for all-day efficiency

• All the suspension performance without the weight.

• Customized suspension development to support Revolver's best attributes.

• A lightweight frame that encourages putting the hammer down.

• Balanced weight distribution for top-of-class ride feel across sizes.

• Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.

• No Other Way Limited Lifetime Warranty.

Specs.

Frameset
Frame; Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork; Rockshox Reba RL, Motion Control, 130mm, 44mm offset,
Rear Shock; Rockshox SID LUX Select +, 190x45mm, standard
Drivetrain
Rear Shifter; Shimano Deore SL-M6100, 12sp
Rear Derailleur    Shimano Deore RD-M6100, 12sp, SGS
Crankset; Shimano Deore FC-MT512, 32T, CL55, 165mm (S1), 170mm (S2,S3) 175mm (S4,S5)
Bottom Bracket; Shimano BB-MT501, BSA 73mm

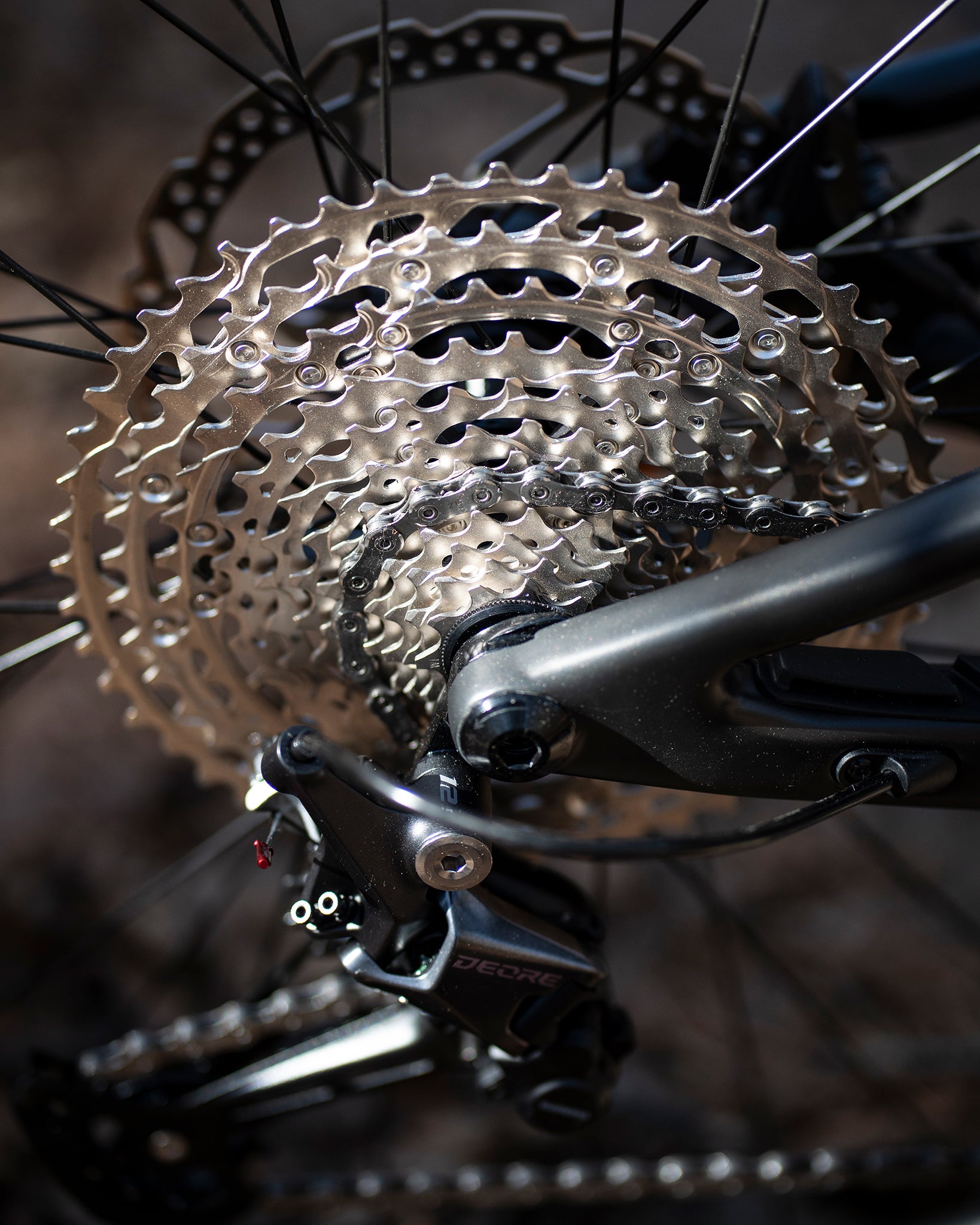

Cassette; Shimano Deore CS-M6100-12, 10-51T, 12sp
Chain; Shimano Deore CN-M6100-12, 12sp
Brakes
Front Brake; Shimano Deore BR-MT410, 2-Piston, Resin Pads
Front Brake Rotor; Shimano SM-RT64, 180mm, C-lock
Rear Brake; Shimano Deore BR-MT410, 2-Piston, Resin Pads
Rear Brake Rotor; Shimano SM-RT64, 180mm, C-lock
Brake Levers; Shimano Deore M4100
Components
Handlebar; Norco 6061, 760 (S1,S2,S3) 780mm (S4,S5), 20mm rise
Stem; Norco 6061, 50mm, 35mm Clamp
