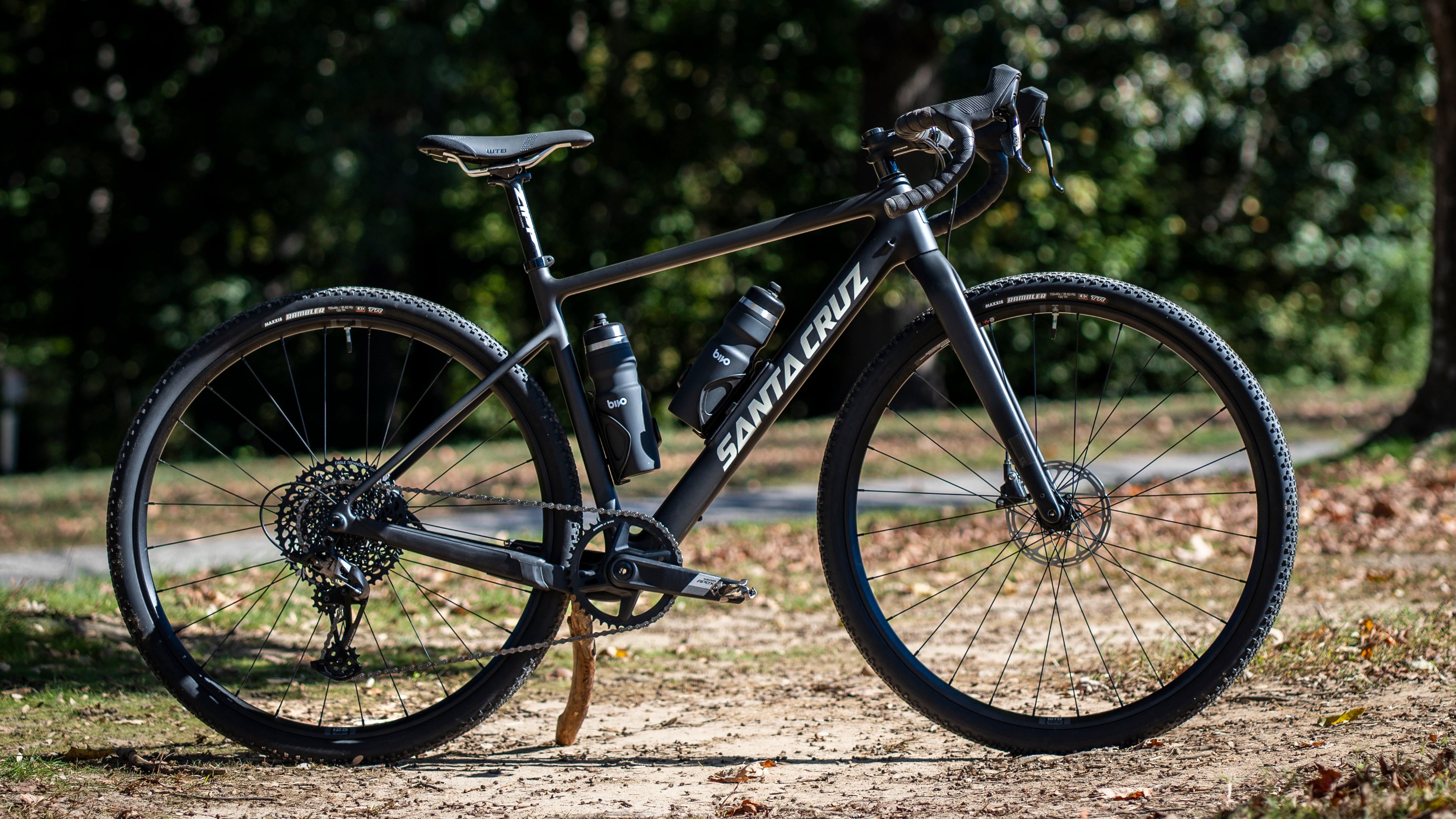

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine.

It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

Specs.

Frame; Carbon CC Gravel
Weight; 20.86lbs / 9.46kg
Wheel Size; 700cSuspension
Fork; Carbon
Shock; N/A
Drivetrain
Bottom Bracket; SRAM DUB 68mm Road Wide BB
Cassette; SRAM XG1275 Eagle, 12spd, 10-50t
Chain; SRAM SX Eagle, 12spd
Chainguide; N/A
Crankset; SRAM Apex, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Rear Derailleur; SRAM Apex Eagle, 12spd
Right Shifter; SRAM Apex
Brakes
Brakes; SRAM Apex
Front Rotor; SRAM Centerline, Centerlock, 160mm
Rear Rotor; SRAM Centerline, Centerlock, 160mm
Cockpit
Grips / Bar Tape; Velo Bar Tape;
Handlebars; Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset; FSA IS-2/47/42 ACB
Saddle; WTB Silverado Medium, CroMo
Seatpost; Zipp Service Course, 27.2 All Sizes: 350mm
Stem; Zipp Service Course Stem All Sizes: 70mm
Wheels
Front Rim; WTB ASYM i25 28h 700c
Front Hub; DT Swiss 370, 12x100, Centerlock, 28h
Front Tire; Maxxis Rambler, 700x45c, DC, EXO
Rear Rim; WTB ASYM i25 28h 700c
Rear Hub; DT Swiss 370, 12x142, XDr, Centerlock, 28h
Rear Tire; Maxxis Rambler, 700x45c, DC, EXO
Valves; Reserve Fillmore Valves
Specs
Bottom Bracket Shell; Threaded 68mm
Rear Brake Mount; 160mm FM
Fork Axle to Crown; 430mm
Fork Compatibility; 40mm
Fork Offset; 45mm
Front Derailleur Mount; Clamp On
Headset; Integrated (IS41/52)
Max Chainring Size; 42t (1x) | 50t (2x)
Max Tire Clearance; 50mm (1x) | 45mm (2x)
Rear Spacing; 142mm
Seat Clamp Diameter; 31.8mm
Seat Post Diameter; 27.2mm
UDH Compatible; Yes
Water Bottle Mounts; 3
