Regular price $ 1,999.99

Color
Size

Only 1 in stock

 More payment options

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing?

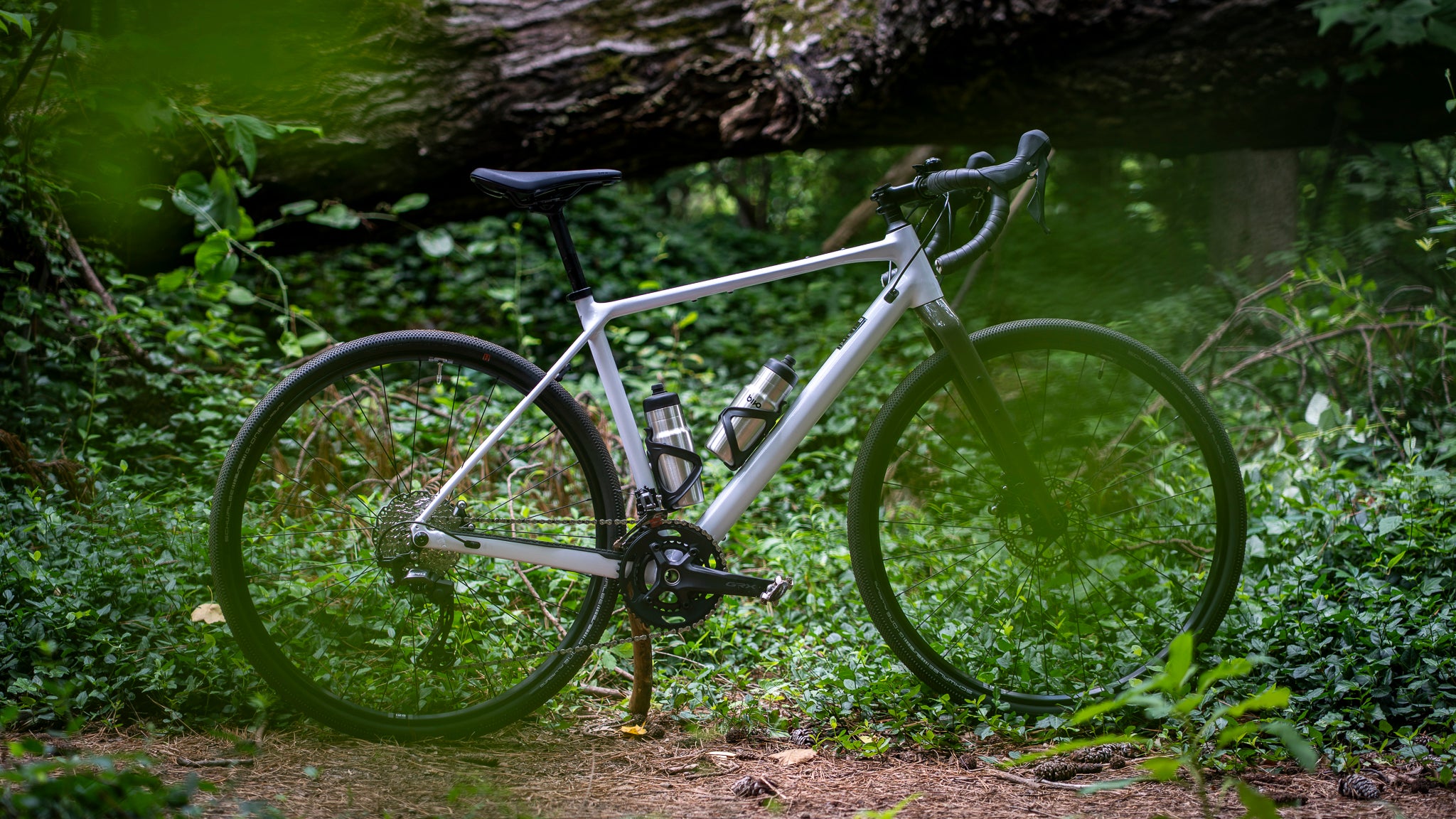

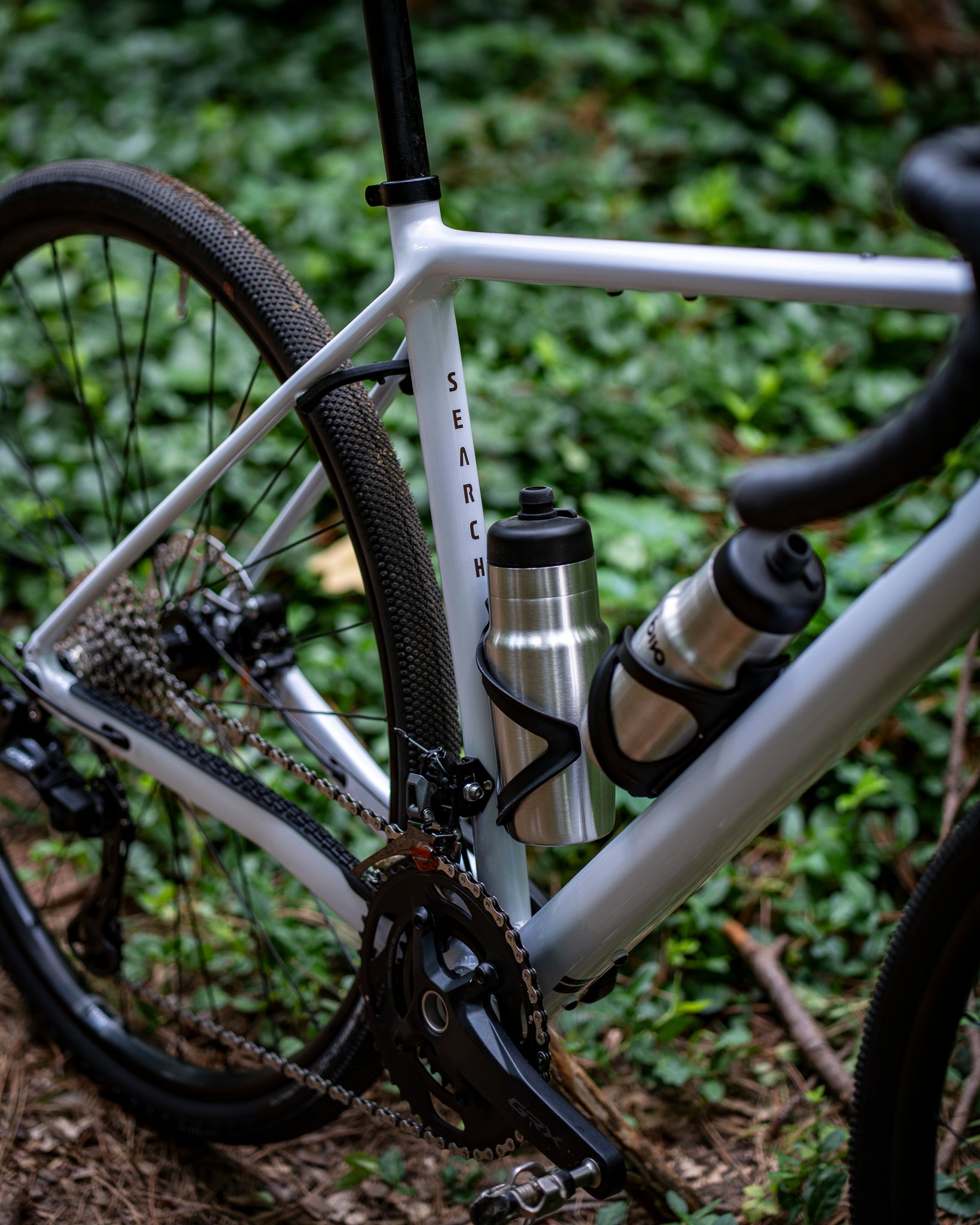

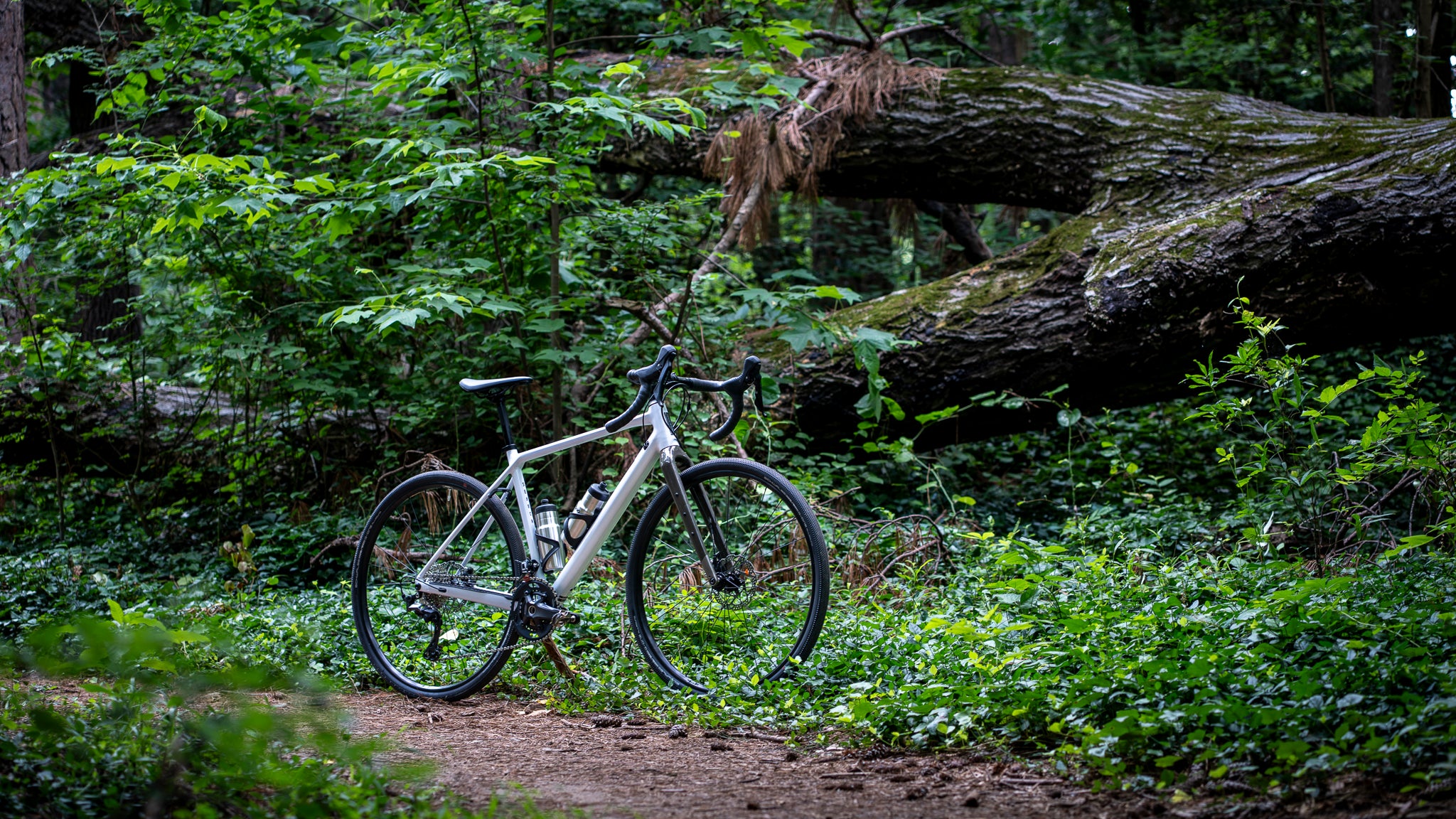

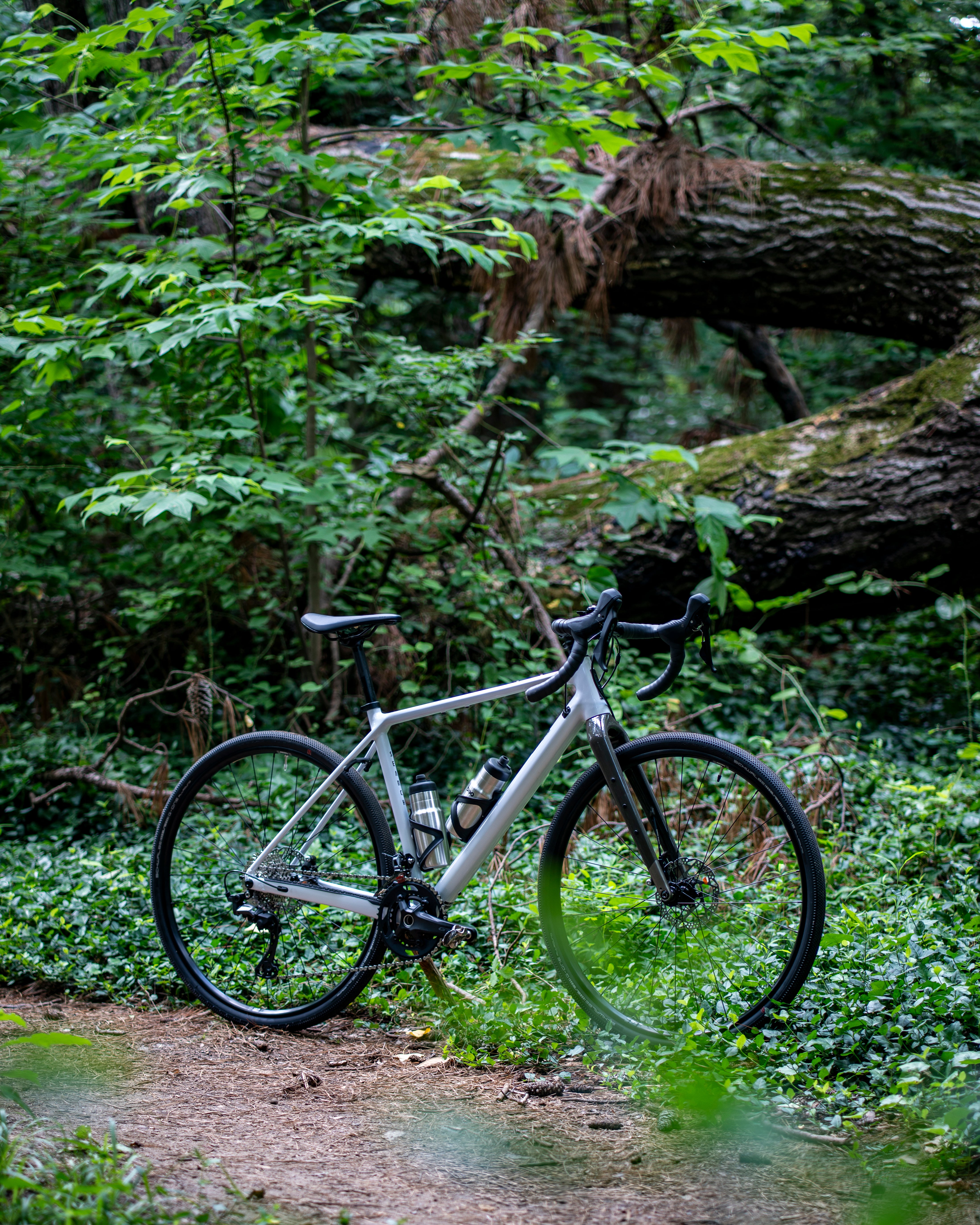

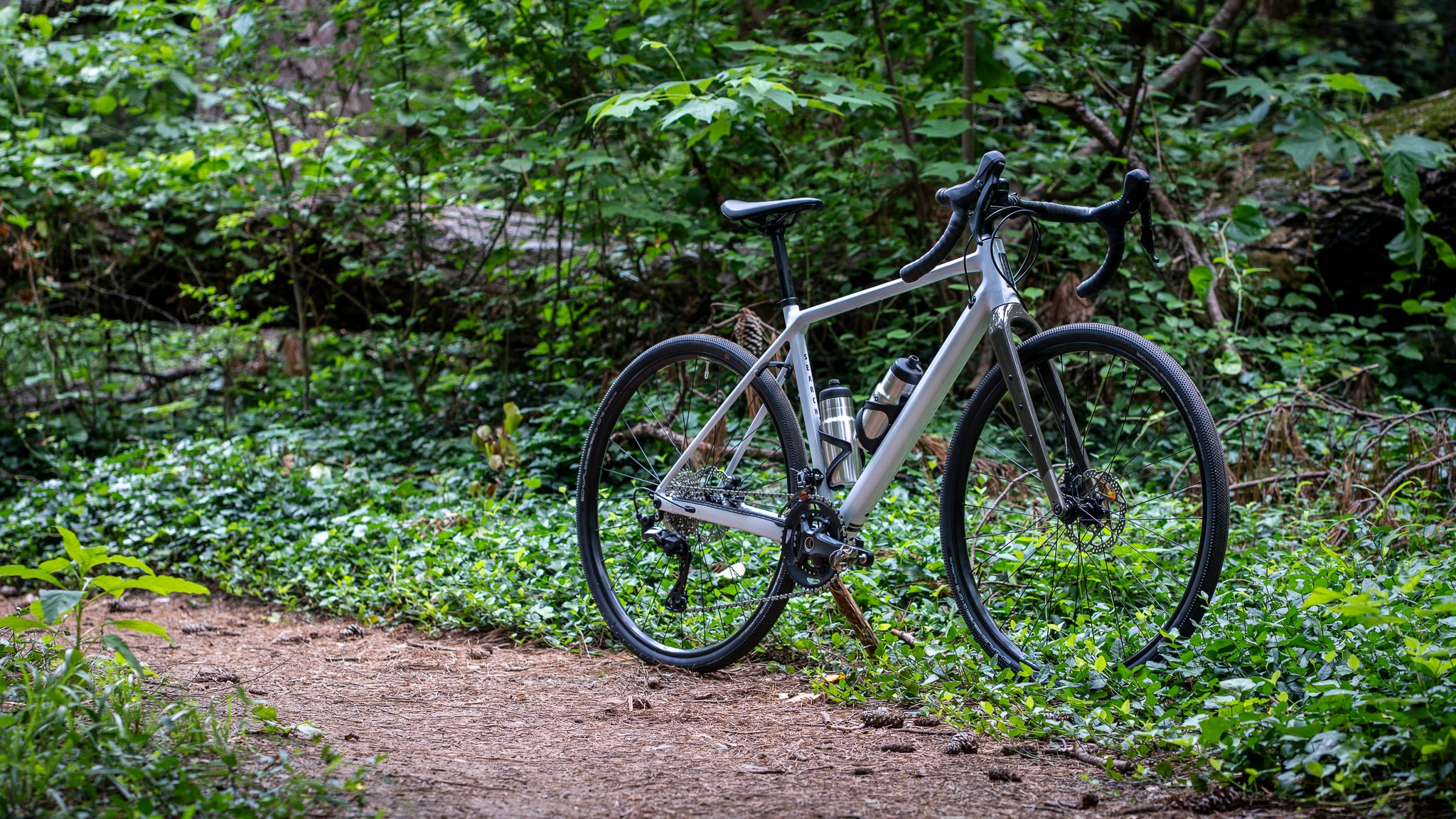

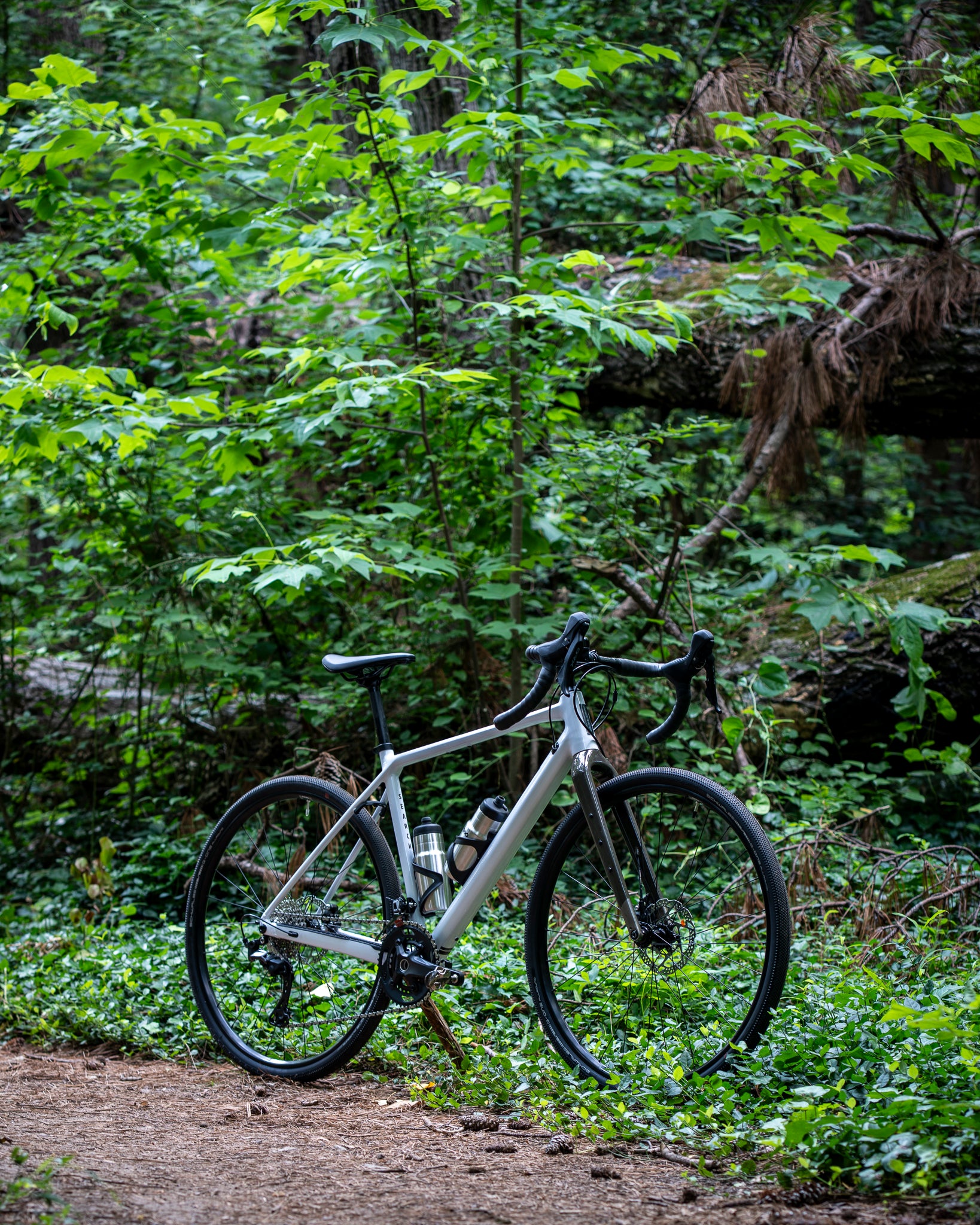

Search A GRX is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano GRX 2x12 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.

A progressive, modern gravel bike.

Search A GRX features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

Specs.

Frameset

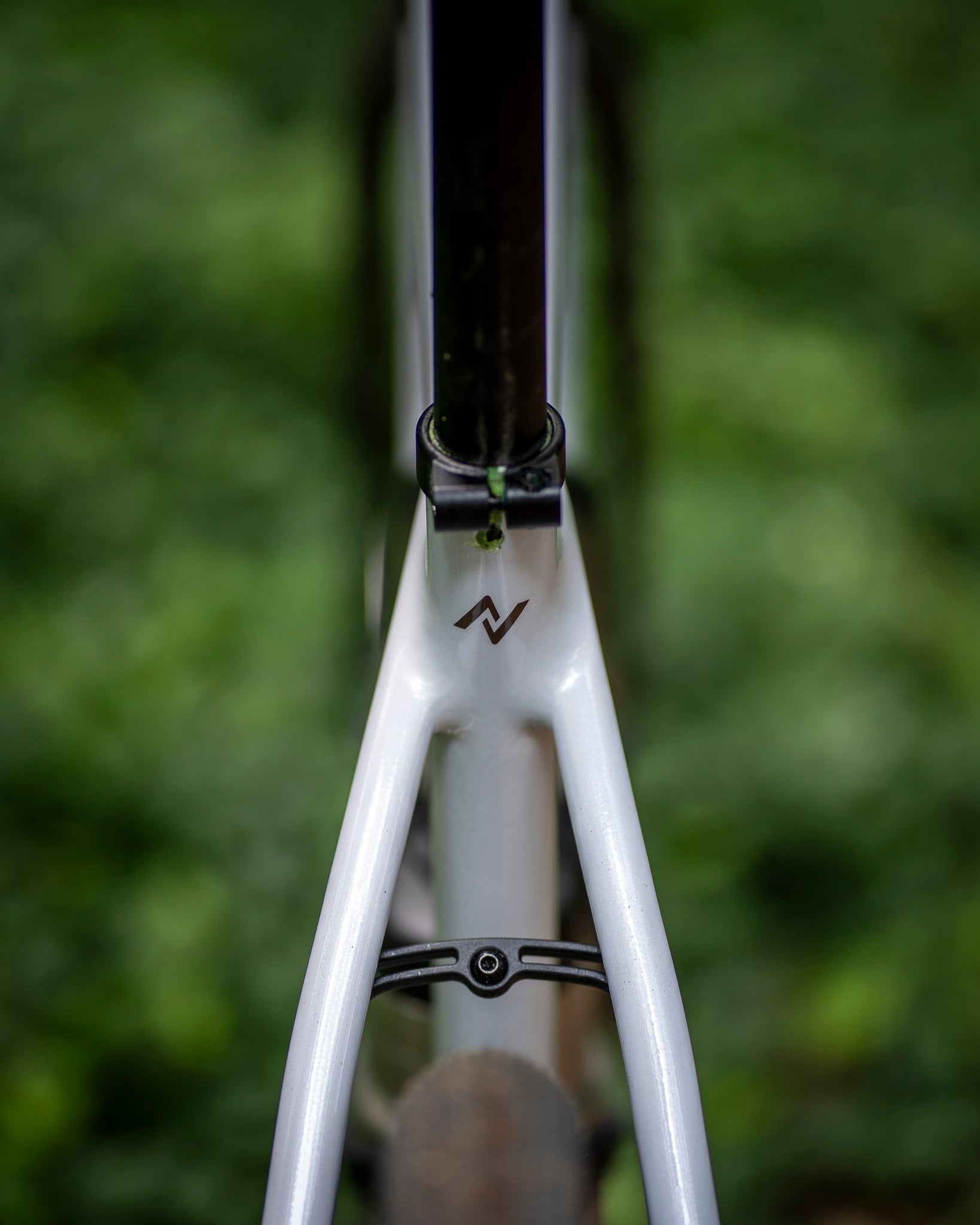

FRAME; Search XR Butted Aluminum w/Smooth Welds
FORK; Search XR Carbon, 51mm Offset, 12x100mm TA

Drivetrain
REAR SHIFTER; Shimano GRX ST610, 12sp
REAR DERAILLEUR; Shimano GRX GS RD-RX820, 12sp
FRONT SHIFTER; Shimano GRX ST610, 2x
FRONT DERAILLEUR; Shimano GRX FD-RX820,Braze On, Down Swing
CRANKSET; Shimano GRX FC-RX610, 46-30T, 47CL, 165mm (S1,S2) - 170mm (S3,S4) - 172.5mm (S5)
BOTTOM BRACKET; Shimano SM-BBR60, 68mm BSA
CASSETTE; Shimano CS-HG710, 10-36T, 12sp
CHAIN; KMC X12

Brakes
FRONT BRAKE; Shimano BR-RX400, Resin w/o Fin
FRONT BRAKE ROTOR; Shimano SM-RT64, 160mm, C-lock
REAR BRAKE; Shimano BR-RX400, Resin w/o Fin
REAR BRAKE ROTOR; Shimano SM-RT64, 160mm, C-lock
BRAKE LEVERS; Shimano GRX ST610

Components
HANDLEBAR; Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
STEM; Norco SL Alloy 70mm Length, 31.8mm Clamp
SEATPOST; Norco Alloy, 27.2mm, 12Deg Offset, 300mm length
HEADSET; FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
SADDLE; Selle Royale SRX Gravel, 148mm
GRIPS; Griptacular Shockproof Tape 3mm
SEATPOST CLAMP; Norco Aluminum, 31.8mm ID

Wheels
FRONT HUB; Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock
REAR HUB; Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H, C-lock
RIMS; WTB ST i25 2.0, 28h, 25mm ID
FRONT TIRE; Schwalbe G-One All Round, Race Guard, 700x45c
REAR TIRE; Schwalbe G-One All Round, Race Guard, 700x45c
SPOKES/NIPPLES; Sapim Leader 2.0mm - Black w/Black Brass Nipples
VALVES; WTB TCS Tubeless Valve, Brass
SEALANT; WTB TCS Tubeless Tire Sealant, 8oz/236ml
RIM TAPE; WTB TCS 2.0 Solid Strip
