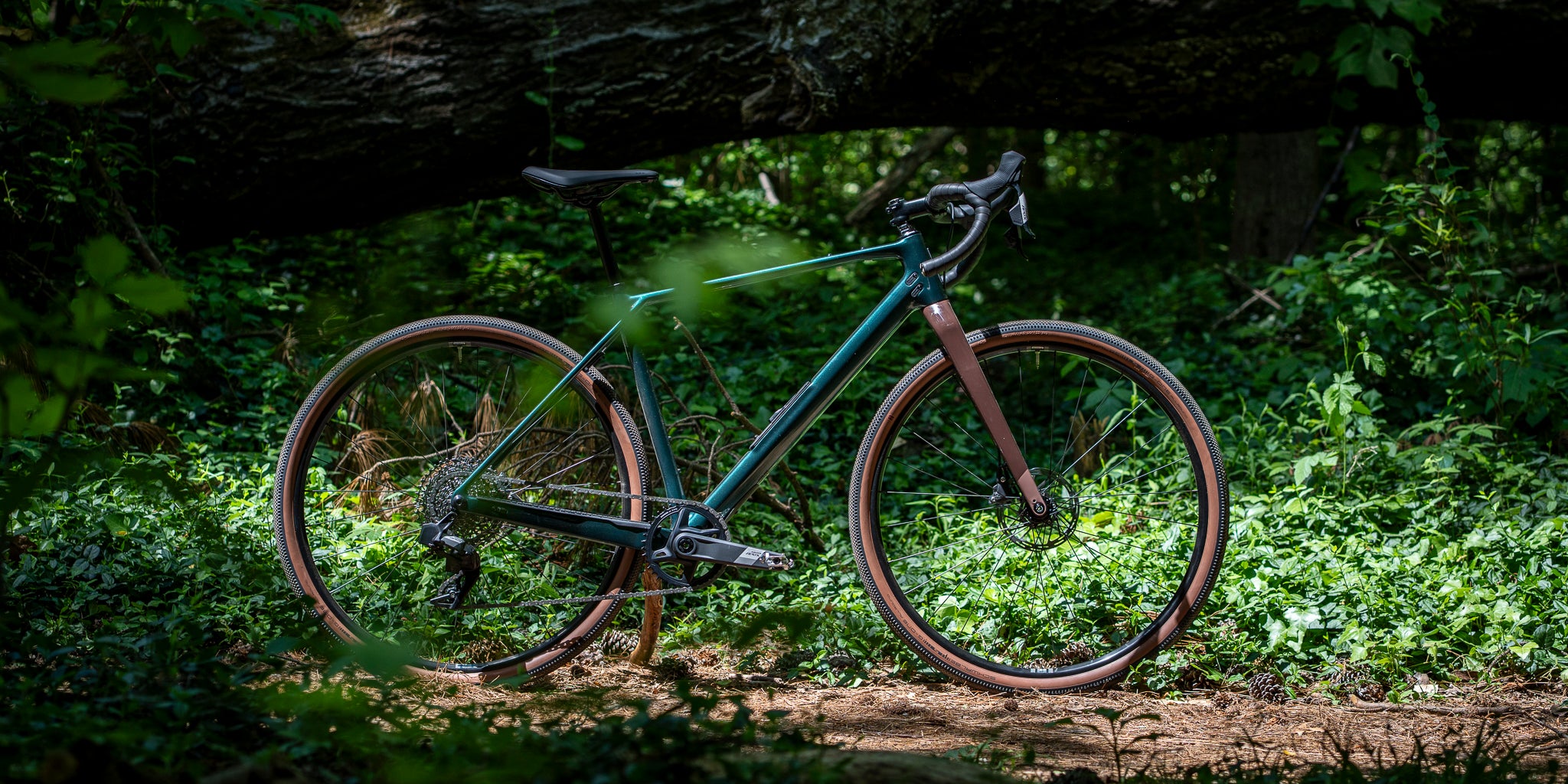

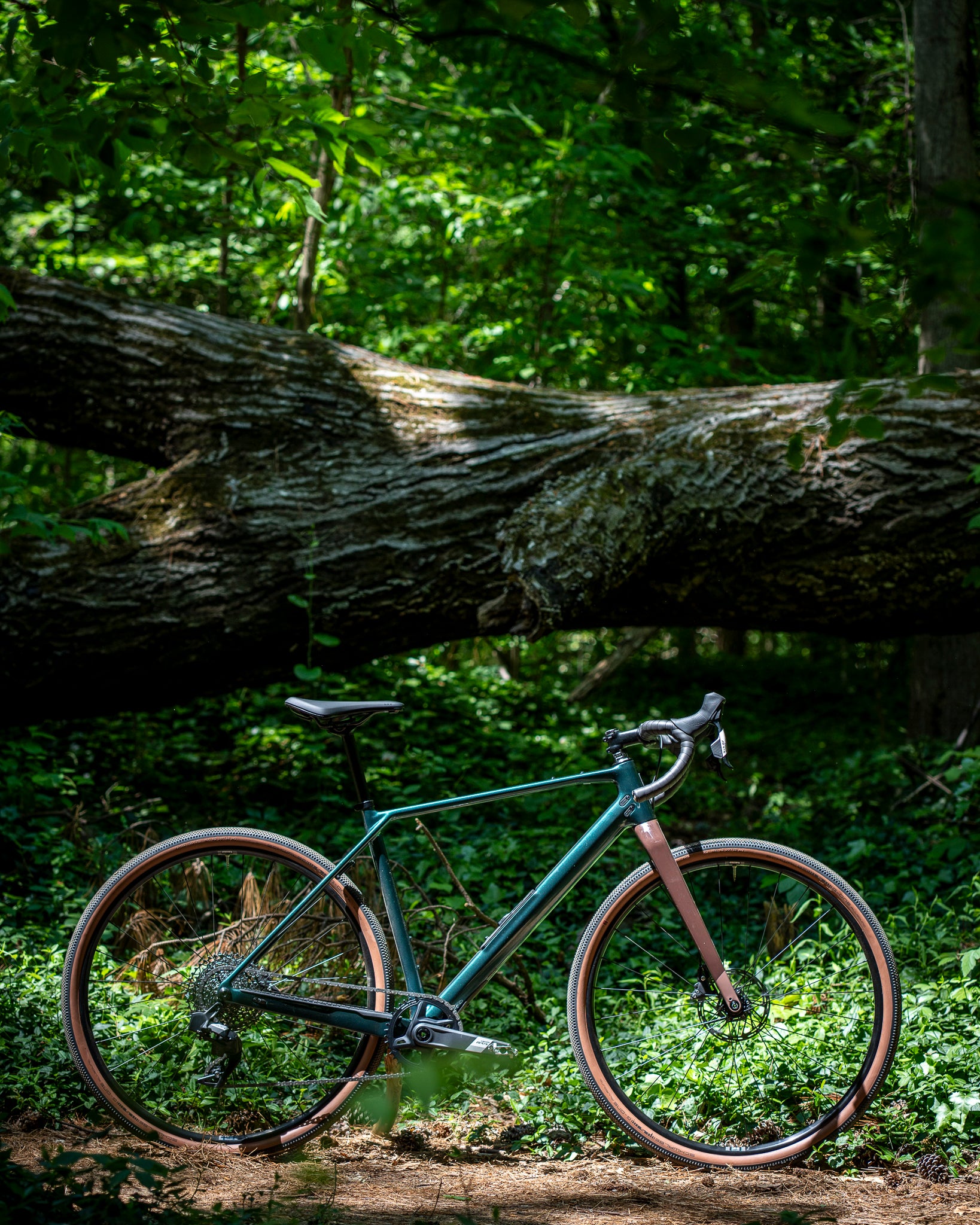

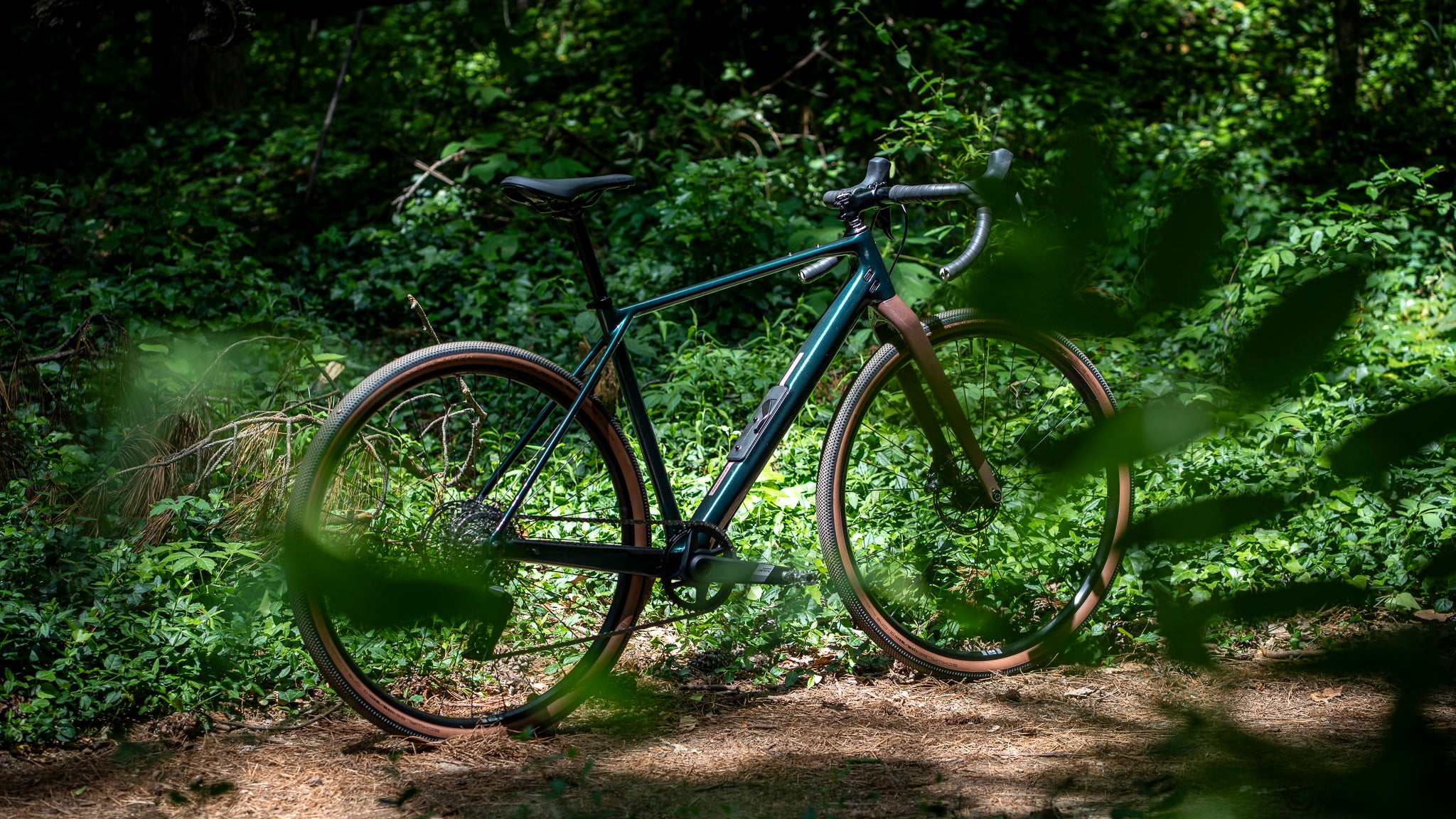

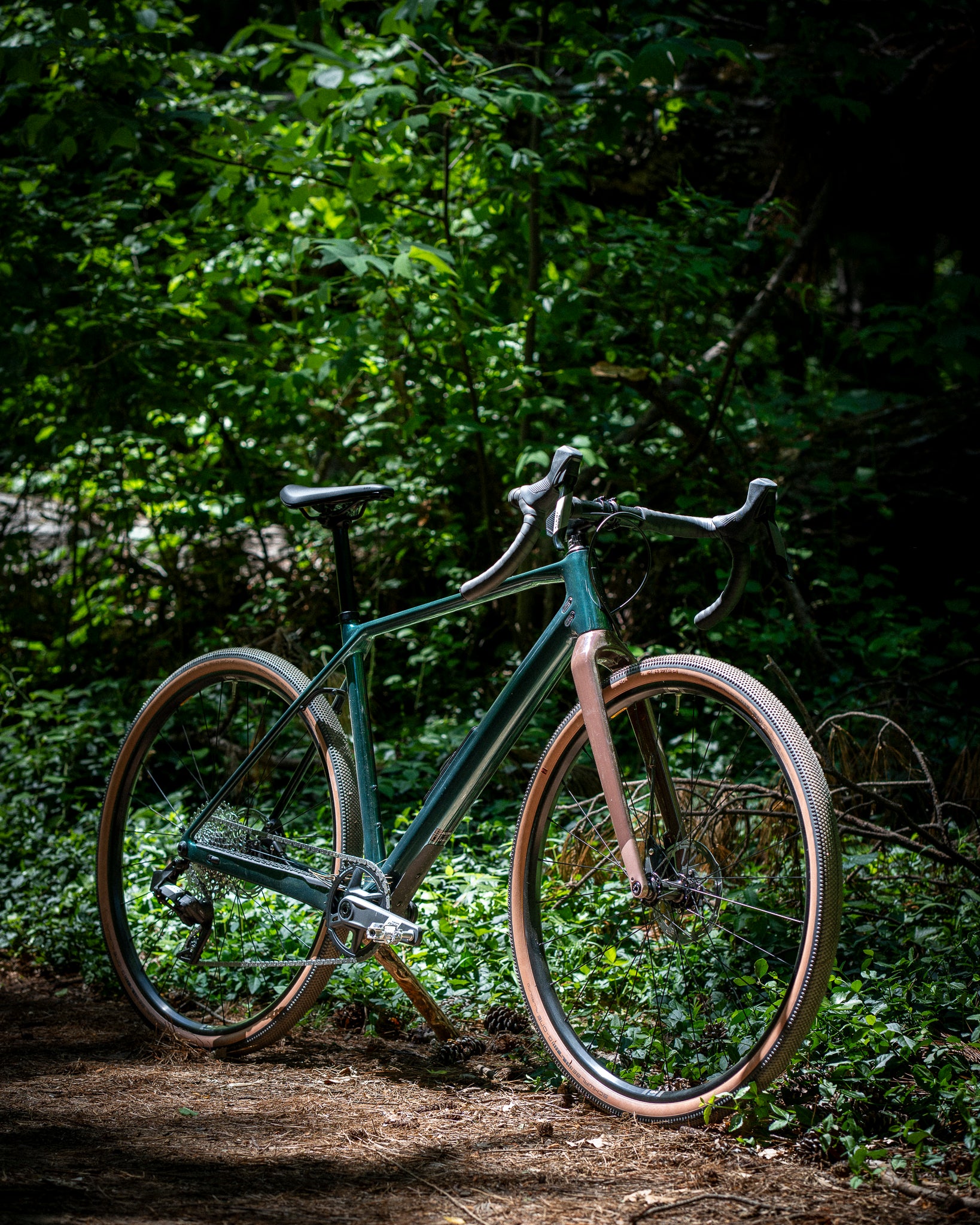

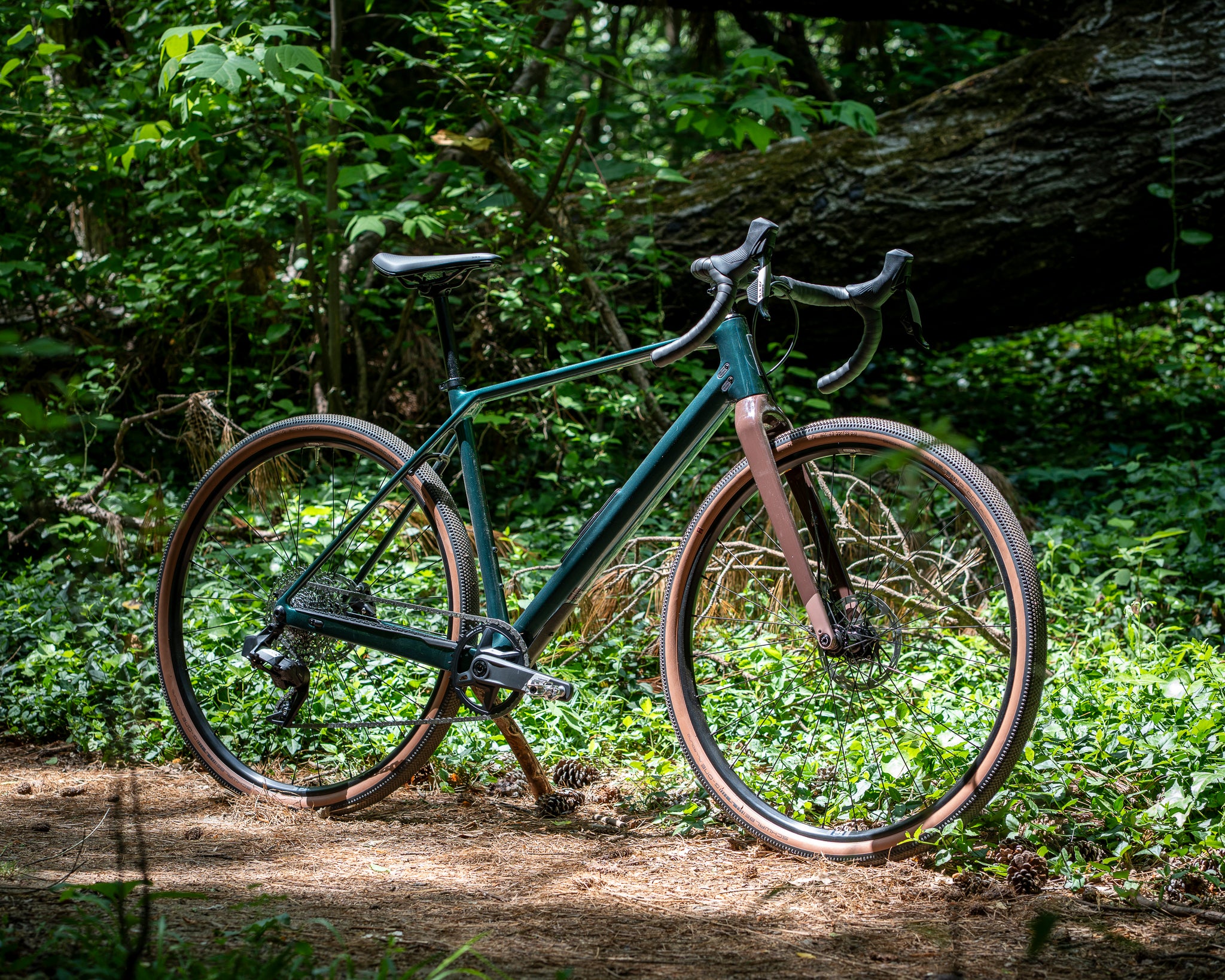

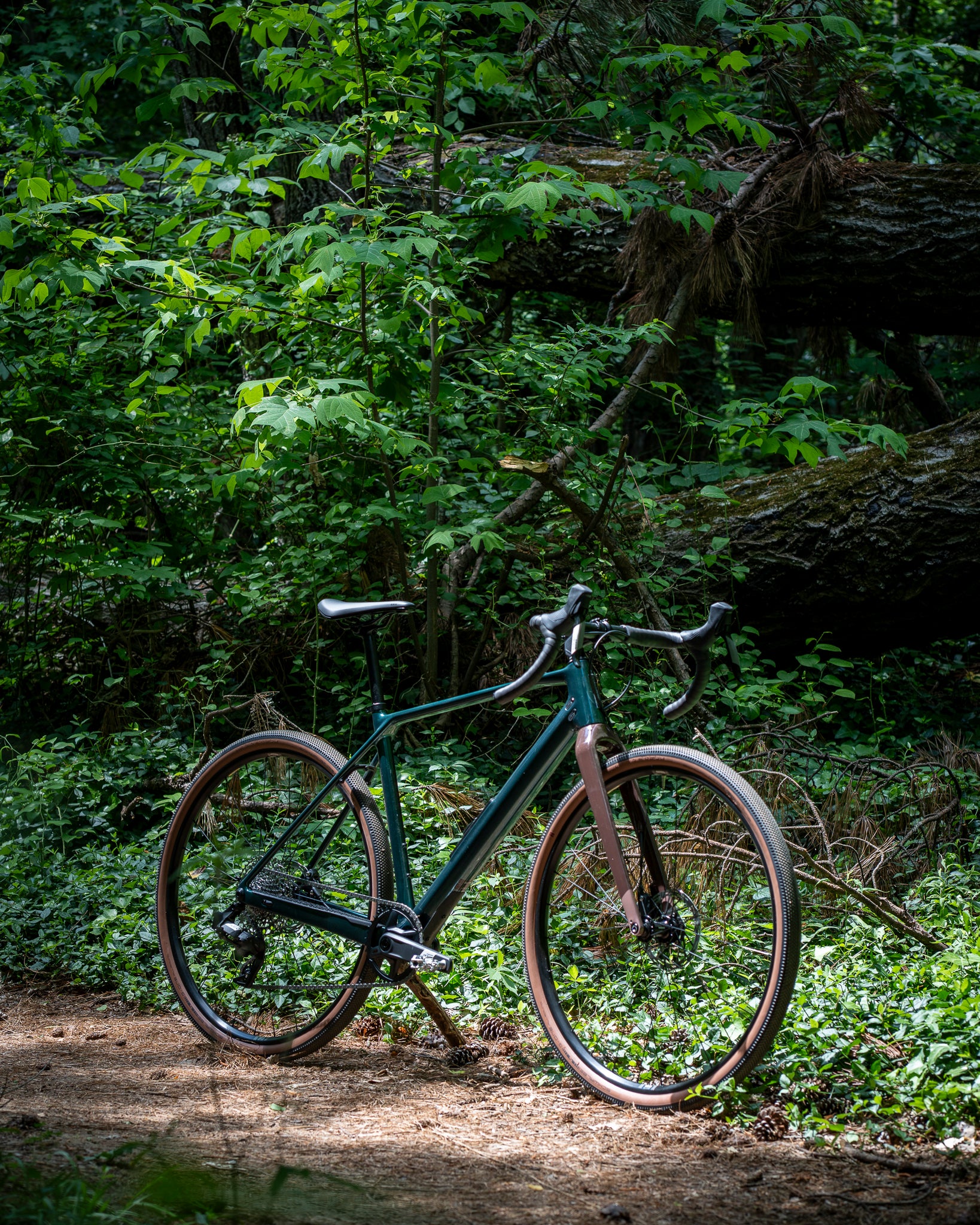

Search C Apex XPLR is ready for your next gravel adventure with modern gravel geo, a lightweight full carbon frame featuring Norco's proprietary downtube storage, SRAM Apex XPLR drivetrain, tire clearance up to 50c, and full-coverage fender and toptube bag mounts.

A progressive, modern gravel bike.

Search C Apex XPLR features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

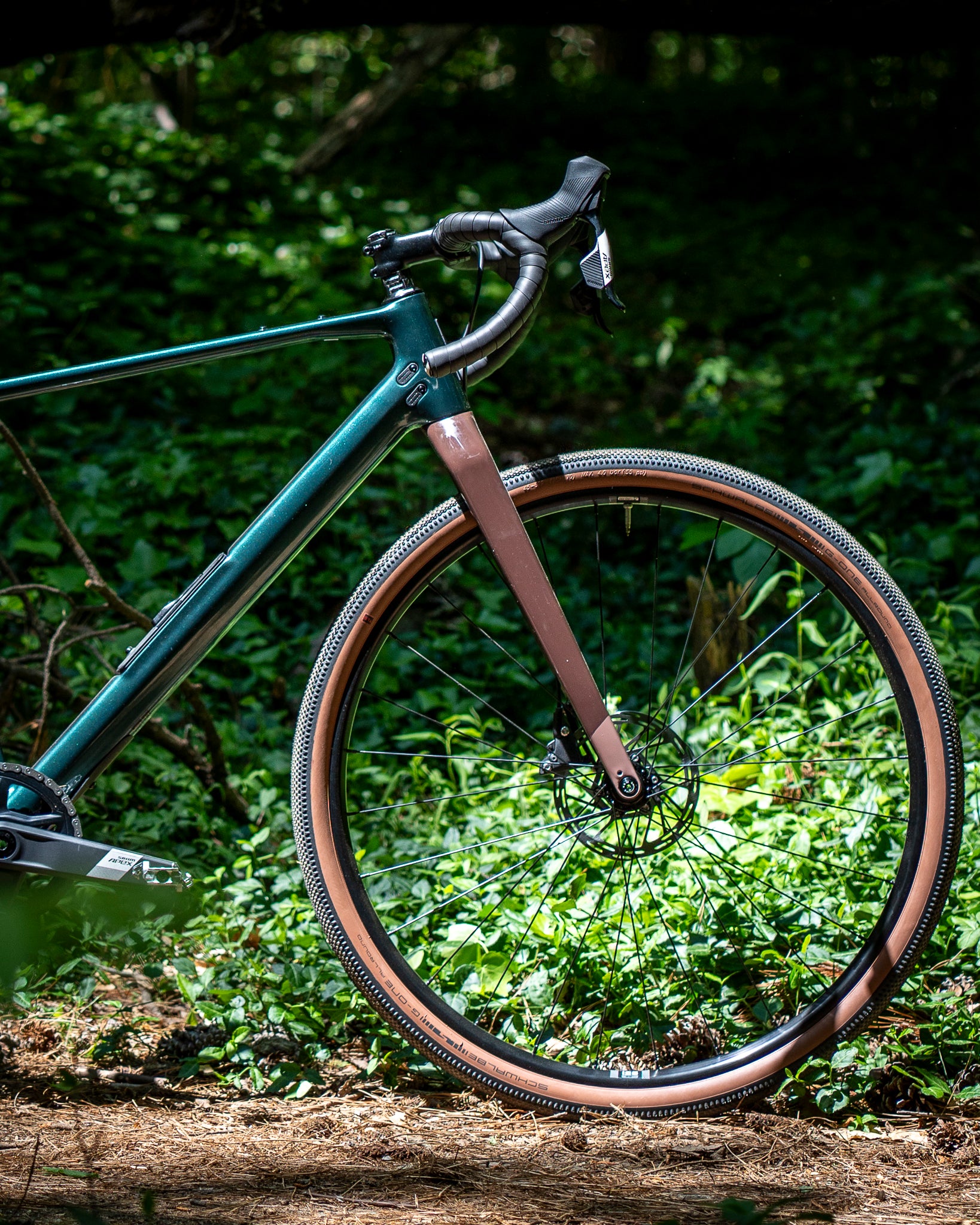

The updated, longer fork adds stability and the new geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

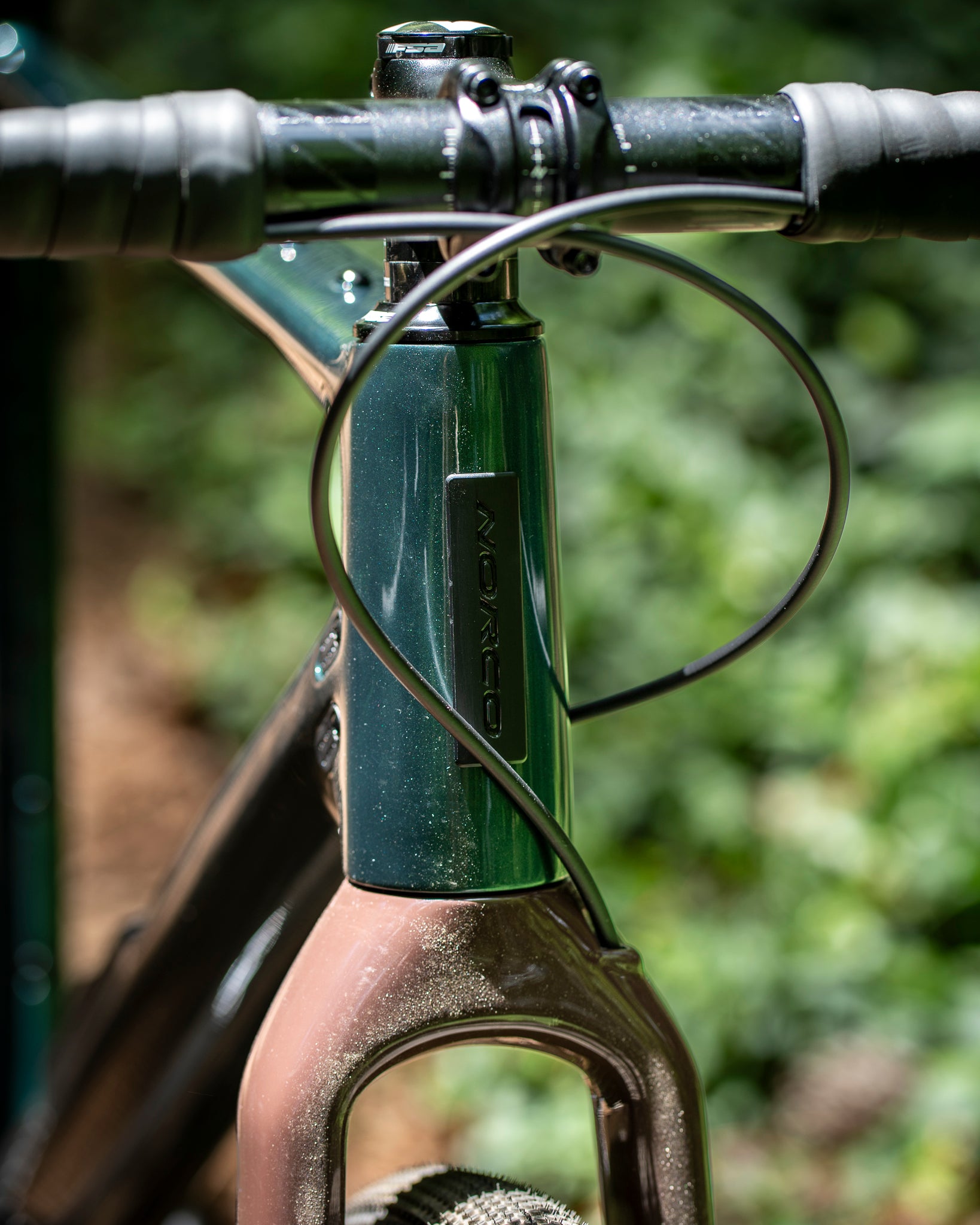

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

Details

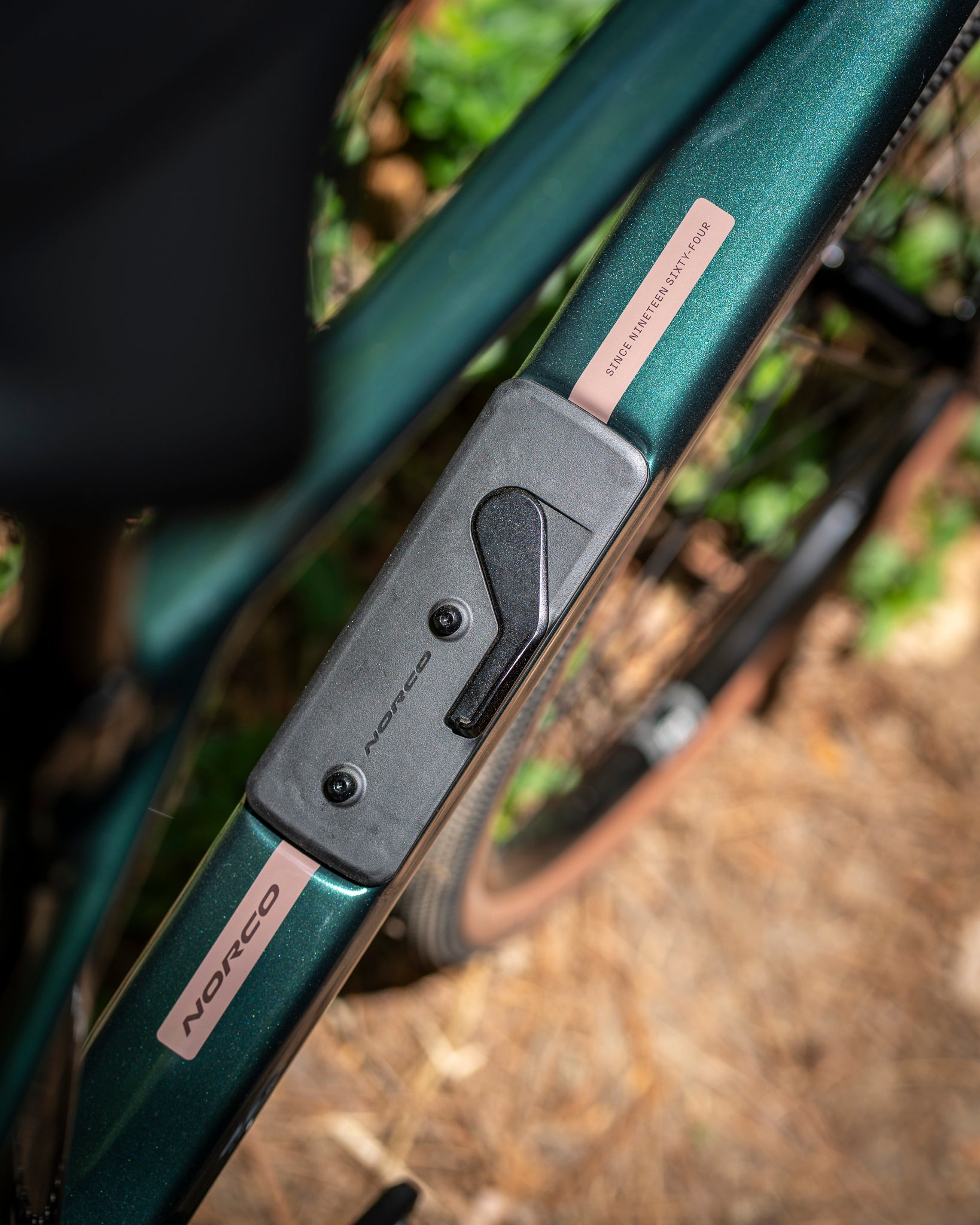

• Progressive and confidence-inspiring.Easy-Access Downtube Storage

• A lightweight frame with options.

• Updated features for easy wrenching.

• More traction, when you want it.

• Versatile mount options.

• No Other Way Limited Lifetime Warranty.

Specs.

Frameset
FRAME; Search Carbon w/ DT Storage, UDH Compatible
FORK; Search Carbon, 51mm Offset, 12x100mm TA

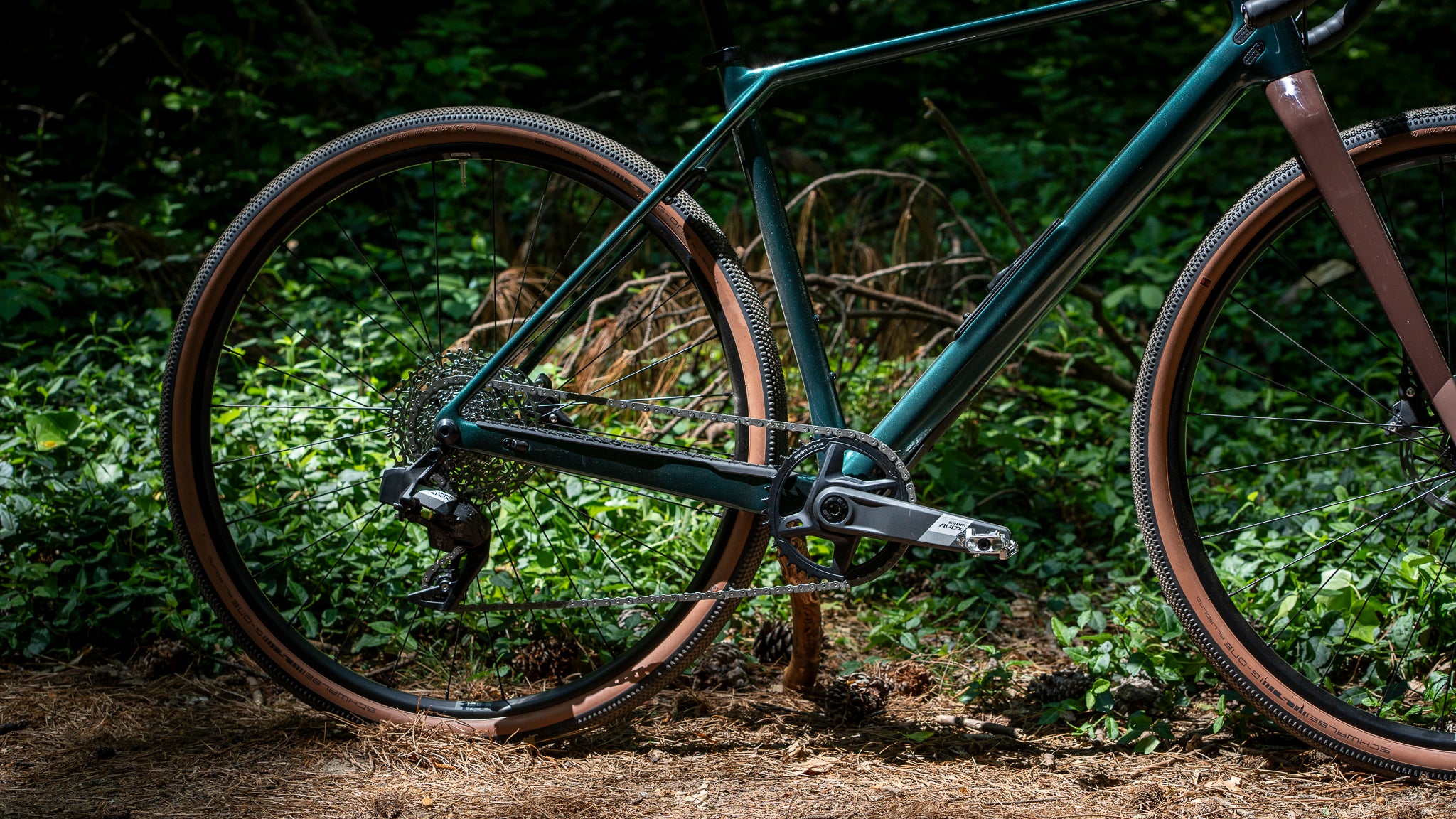

Drivetrain
REAR SHIFTER; SRAM Apex AXS HRD Shift-Brake System
REAR DERAILLEUR; SRAM Apex XPLR AXS Rear Derailleur, 12sp
FRONT SHIFTER
SRAM Apex AXS HRD Shift-Brake System
CRANKSET; SRAM Apex D1 40T, 47.5CL, 170mm
BOTTOM BRACKET; SRAM Dub BSA 68 Road Wide
CASSETTE; SRAM XPLR PG-1231, 11-44T, 12sp
CHAIN; SRAM Apex, 118L

Brakes
FRONT BRAKE; SRAM Apex AXS HRD Shift-Brake System
FRONT BRAKE ROTOR; SRAM Paceline, 160mm, C-lock
REAR BRAKE; SRAM Apex AXS HRD Shift-Brake System
REAR BRAKE ROTOR; SRAM Paceline, 160mm, C-lock
BRAKE LEVERS; SRAM Apex AXS HRD Shift-Brake System

Components
HANDLEBAR; Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
STEM; Norco SL Alloy 70mm Length, 31.8mm Clamp
SEATPOST; Norco Alloy, 27.2mm, 0Deg Offset, 350mm length
HEADSET; FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
SADDLE; Selle Royale SRX Gravel, 148mm
GRIPS
; Griptacular Shockproof Tape 3mm
SEATPOST CLAMP; Norco Aluminum, 31.8mm ID

Wheels
FRONT HUB; Shimano HB-TC500, 12x100mm, 28H
REAR HUB; Shimano FH-TC500, 12x142mm, HG, 28H
RIMS; WTB Alloy ST i25 2.0, 28h, 25mm ID
FRONT TIRE; Schwalbe G-One All Round, Race Guard, 700x45c
REAR TIRE; Schwalbe G-One All Round, Race Guard, 700x45c
SPOKES/NIPPLES; Double Butted, Black Alloy
VALVES; WTB TCS Tubeless Valve, Brass
SEALANT; WTB TCS Tubeless Tire Sealant, 8oz/236ml
RIM TAPE; WTB TCS 2.0 Solid Strip

Additional Info
ACCESSORIES; Norco Storage Bag - Ocean-X Water Resistant
